詳細情報 |
|||
| サイズ: | 直径110から400のmm | 目的: | 切られた乾燥した堅く、柔らかい木のため |
|---|---|---|---|
| 歯モデル: | ATB | 速度: | 速いスピード |
| 質: | 良質 | パッキング: | カートン |
| ハイライト: | 5in TCTは鋸歯を,125mm TCTは鋸歯を,diy鋸歯400mm |
||
製品の説明

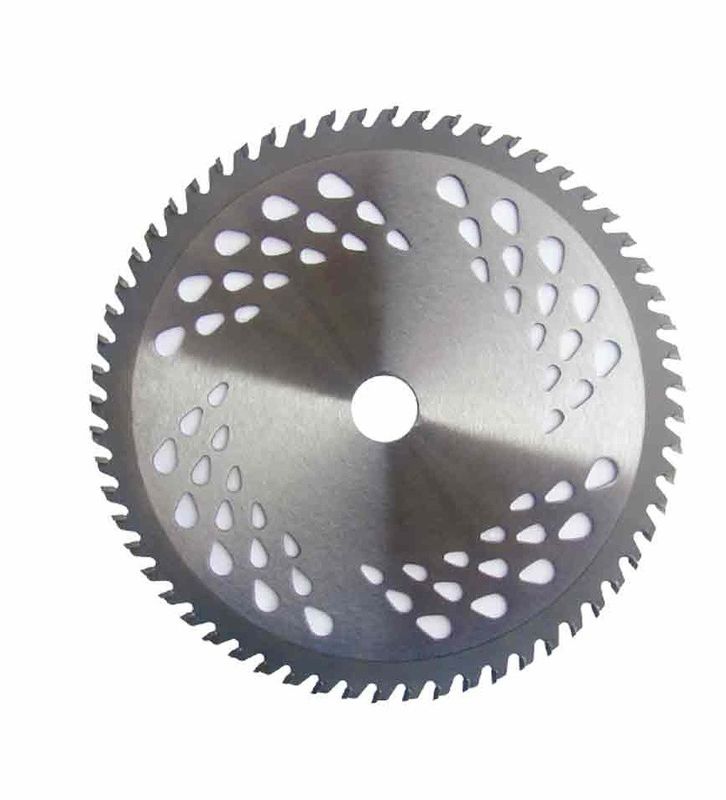

木のための極めて薄い円の鋸歯
|
外径（D）直径 |
基体厚度ボディ厚さ （mm） |
切宽の切り目（mm） |
孔径（d）の穴径（mm） |
齿数（Z）歯 |
|
|
インチ |
メートル（mm） |
||||
|
4" |
110 |
1.2 |
1.8 |
20 |
24T |
|
4" |
110 |
1.2 |
1.8 |
20 |
30T |
|
4" |
110 |
1.2 |
1.8 |
20 |
40T |
|
5" |
125 |
1.2 |
1.8 |
20 |
24T |
|
5" |
125 |
1.2 |
1.8 |
20 |
30T |
|
5" |
125 |
1.2 |
1.8 |
20 |
40T |
|
6" |
150 |
1.3 |
2.0 |
20/25.4 |
24T |
|
6" |
150 |
1.3 |
2.0 |
20/25.4 |
40T |
|
6" |
150 |
1.3 |
2.0 |
20/25.4 |
60T |
|
7" |
180 |
1.3 |
2.2 |
20/25.4 |
24T |
|
7" |
180 |
1.3 |
2.2 |
20/25.4 |
40T |
|
7" |
180 |
1.3 |
2.2 |
20/25.4 |
60T |
|
8" |
200 |
1.5 |
2.2 |
20/25.4 |
24T |
|
8" |
200 |
1.5 |
2.2 |
20/25.4 |
40T |
|
8" |
200 |
1.5 |
2.2 |
20/25.4 |
60T |
|
8" |
200 |
1.5 |
2.2 |
20/25.4 |
80T |
|
8" |
200 |
1.5 |
2.2 |
20/25.4 |
100T |
|
9" |
230 |
1.6 |
2.3 |
20/25.4 |
40T |
|
9" |
230 |
1.6 |
2.3 |
20/25.4 |
60T |
|
9" |
230 |
1.6 |
2.3 |
20/25.4 |
80T |
|
9" |
230 |
1.6 |
2.3 |
20/25.4 |
100T |
|
10" |
250 |
2.0 |
3.0 |
20/25.4 |
40T |
|
10" |
250 |
2.0 |
3.0 |
20/25.4 |
60T |
|
10" |
250 |
2.0 |
3.0 |
20/25.4 |
80T |
|
10" |
250 |
2.0 |
3.0 |
20/25.4 |
100T |
|
10" |
250 |
2.0 |
3.0 |
20/25.4 |
120T |
|
12" |
300 |
2.0 |
3.0 |
25.4/30 |
40T |
|
12" |
300 |
2.0 |
3.0 |
25.4/30 |
60T |
|
12" |
300 |
2.0 |
3.0 |
25.4/30 |
80T |
|
12" |
300 |
2.0 |
3.0 |
25.4/30 |
100T |
|
12" |
300 |
2.0 |
3.0 |
25.4/30 |
120T |
|
14" |
350 |
2.2 |
3.2 |
25.4/30 |
40T |
|
14" |
350 |
2.2 |
3.2 |
25.4/30 |
60T |
|
14" |
350 |
2.2 |
3.2 |
25.4/30 |
80T |
|
14" |
350 |
2.2 |
3.2 |
25.4/30 |
100T |
|
14" |
350 |
2.2 |
3.2 |
25.4/30 |
120T |
|
16" |
400 |
2.5 |
3.5 |
25.4/30 |
40T |
|
16" |
400 |
2.5 |
3.5 |
25.4/30 |
60T |
|
16" |
400 |
2.5 |
3.5 |
25.4/30 |
80T |
|
16" |
400 |
2.5 |
3.5 |
25.4/30 |
100T |
|
16" |
400 |
2.5 |
3.5 |
25.4/30 |
120T |
|
18" |
450 |
3.0 |
3.5 |
25.4/30 |
40T |
|
18" |
450 |
3.0 |
3.5 |
25.4/30 |
60T |
|
18" |
450 |
3.0 |
3.5 |
25.4/30 |
80T |
|
18" |
450 |
3.0 |
3.5 |
25.4/30 |
100T |
|
18" |
450 |
3.0 |
3.5 |
25.4/30 |
120T |
|
20" |
500 |
3.0 |
3.8 |
25.4/30 |
40T |
|
20" |
500 |
3.0 |
3.8 |
25.4/30 |
60T |
|
20" |
500 |
3.0 |
3.8 |
25.4/30 |
80T |
|
20" |
500 |
3.0 |
3.8 |
25.4/30 |
100T |
|
20" |
500 |
3.0 |
3.8 |
25.4/30 |
120T |
